Key Features
-

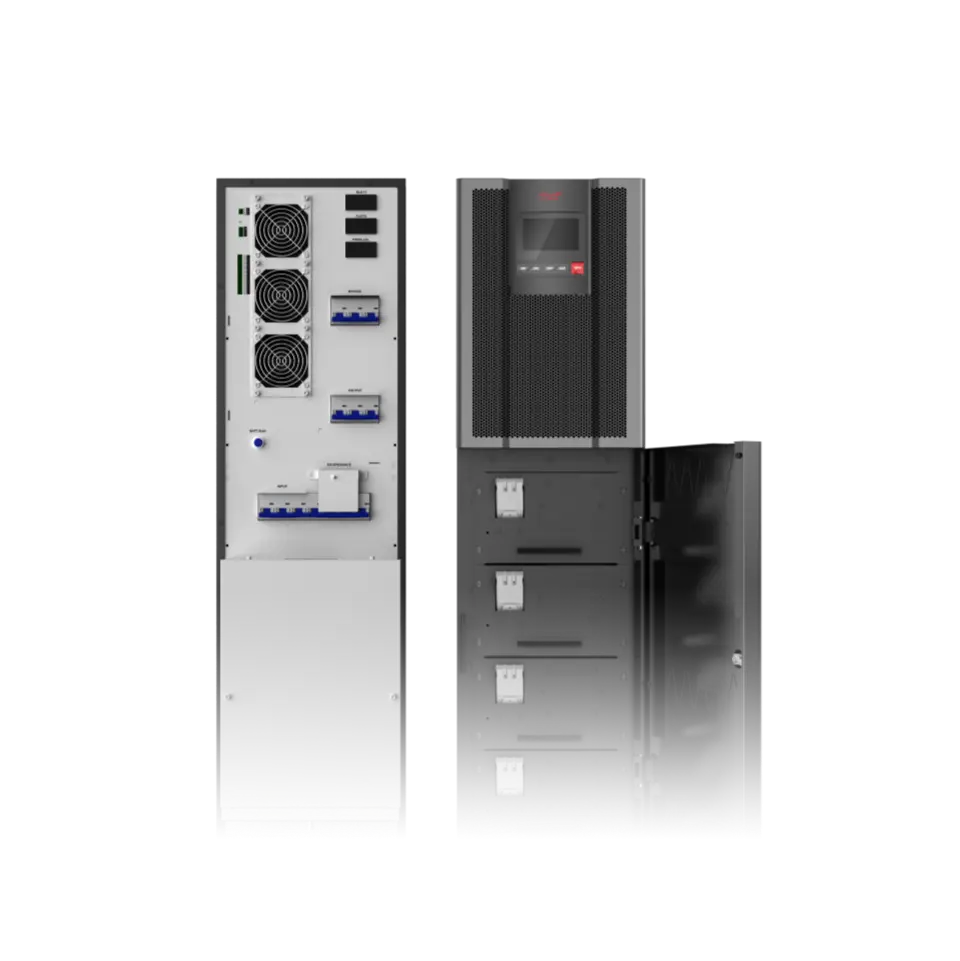

Flexible battery maintenanceBuild-in Hot-swappable battery module, make sure high density and easy for maintenance -
Output power factor 1.0Lightning and surge protection design which help UPS to sustain from high surge peak voltage -
AC/AC efficiency up to 94%High efficiency reduces heat dissipation and to limit power consumption costs -
High ambient temperature up to 50 °CSeparate internal air channel which hot air drives directly towards heat sink without distressing the PCB's and other internal sensitive components
Technical Specification
- Eon10/
- Eon20/
- Eon30
| Parameter | Value |
|---|---|
| Input Voltage (Vac) | 208 / 220 (3W + N + G) |
| AC/AC Efficiency (Max.) | 94% |
| Output Voltage (Vac) | 190 / 200 / 208 / 220 ±1% (L–L) (Default is 208) |
| ECO Efficiency | 99% |
| Dimension (W × D × H) | 378 × 993 × 1250 mm (14.9 × 39.1 × 49.2 in) |
| Weight | 211 kg (465 lb) |
| Parameter | Value |
|---|---|
| Input Voltage (Vac) | 208 / 220 (3W + N + G) |
| AC/AC Efficiency (Max.) | 94% |
| Output Voltage (Vac) | 190 / 200 / 208 / 220 ±1% (L–L) (Default is 208) |
| ECO Efficiency | 99% |
| Dimension (W × D × H) | 378 × 993 × 1250 mm (14.9 × 39.1 × 49.2 in) |
| Weight | 276 kg (609 lb) |
