10~600kVA

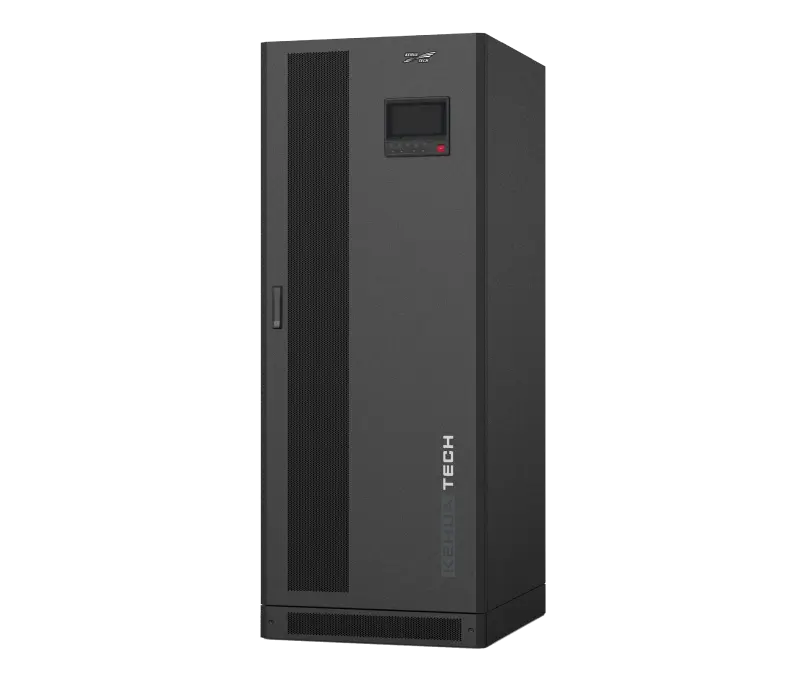

FR-UK33 Series

Downloads
Key Features
  • Full galvanic isolation
    The output isolation transformer provides high reliability to adapt different harsh industrial environments and protects the critical loads
  • Redundant design of key components
  • Full protection function
  • Dual DSP control technology
    Dual DSP control technology makes the data processing faster and more precise, improve the reliability

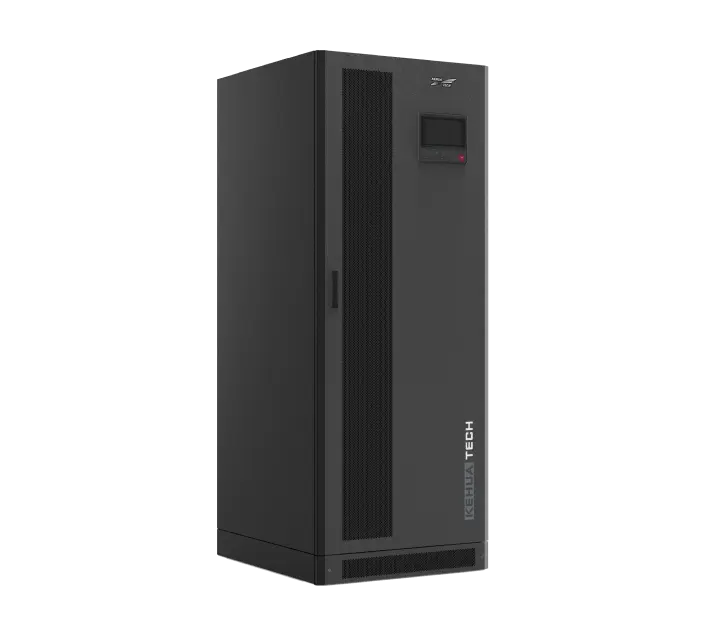

FR-UK33 Series

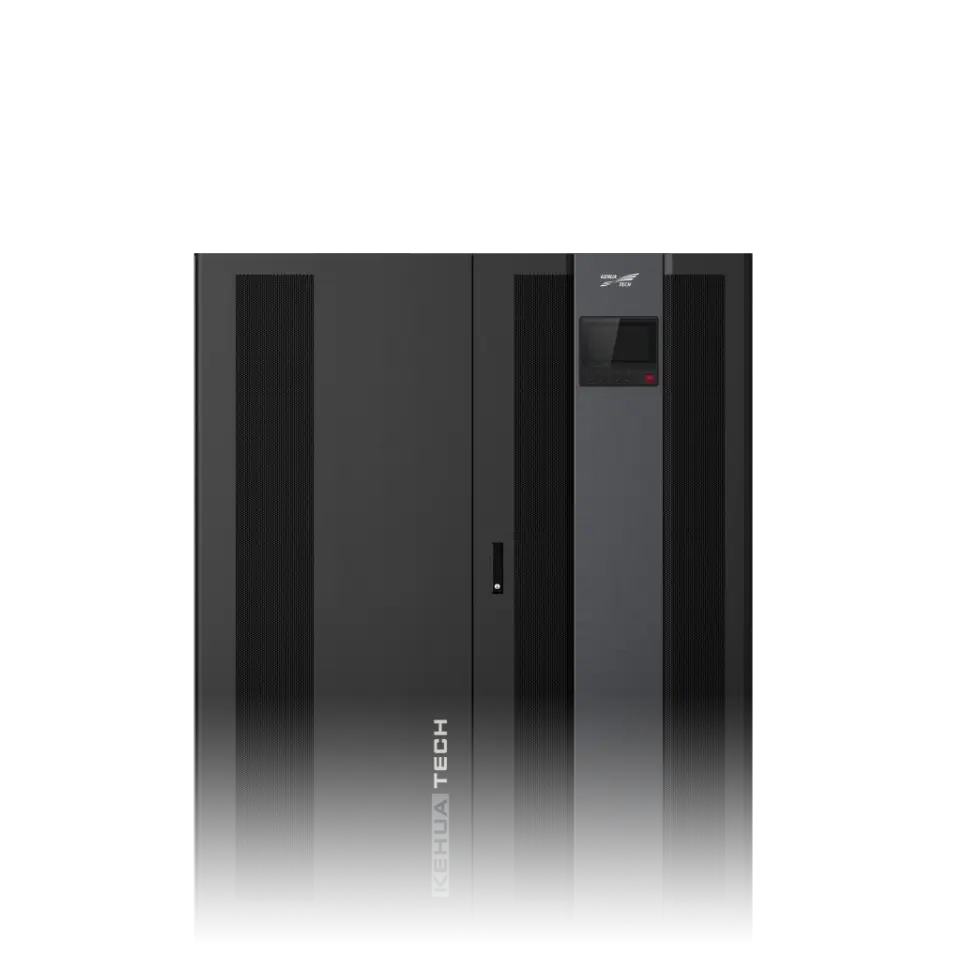

FR-UK33 Series
Technical Specification
  • FR-UK3310/
  • FR-UK3320/
  • FR-UK3330/
  • FR-UK3340/
  • FR-UK3360/
  • FR-UK3380/
  • FR-UK33100/
  • FR-UK33120/
  • FR-UK33160/
  • FR-UK33200/
  • FR-UK33250/
  • FR-UK33300/
  • FR-UK33400/
  • FR-UK33500-12P/
  • FR-UK33600-12P
Specification Value
Input Voltage (Vac) 380 / 400 / 415 ±25%
Output Voltage (Vac) L-N: 220 / 230 / 240 ±1%; L-L: 380 / 400 / 415 ±1%
Dimension (W×D×H) (mm) 500 × 600 × 1180
Weight (kg) 230
Specification Value
Input Voltage (Vac) 380 / 400 / 415 ±25%
Output Voltage (Vac) L-N: 220 / 230 / 240 ±1%; L-L: 380 / 400 / 415 ±1%
Dimension (W×D×H) (mm) 500 × 600 × 1180
Weight (kg) 260
Specification Value
Input Voltage (Vac) 380 / 400 / 415 ±25%
Output Voltage (Vac) L-N: 220 / 230 / 240 ±1%; L-L: 380 / 400 / 415 ±1%
Dimension (W×D×H) (mm) 500 × 600 × 1180
Weight (kg) 300
Specification Value
Input Voltage (Vac) 380 / 400 / 415 ±25%
Output Voltage (Vac) L-N: 220 / 230 / 240 ±1%; L-L: 380 / 400 / 415 ±1%
Dimension (W×D×H) (mm) 500 × 800 × 1600
Weight (kg) 400
Specification Value
Input Voltage (Vac) 380 / 400 / 415 ±25%
Output Voltage (Vac) L-N: 220 / 230 / 240 ±1%; L-L: 380 / 400 / 415 ±1%
Dimension (W×D×H) (mm) 500 × 800 × 1600
Weight (kg) 450
Specification Value
Input Voltage (Vac) 380 / 400 / 415 ±25%
Output Voltage (Vac) L-N: 220 / 230 / 240 ±1%; L-L: 380 / 400 / 415 ±1%
Dimension (W×D×H) (mm) 500 × 800 × 1600
Weight (kg) 520
Specification Value
Input Voltage (Vac) 380 / 400 / 415 ±25%
Output Voltage (Vac) L-N: 220 / 230 / 240 ±1%; L-L: 380 / 400 / 415 ±1%
Dimension (W×D×H) (mm) 700 × 800 × 1800
Weight (kg) 600
Specification Value
Input Voltage (Vac) 380 / 400 / 415 ±25%
Output Voltage (Vac) L-N: 220 / 230 / 240 ±1%; L-L: 380 / 400 / 415 ±1%
Dimension (W×D×H) (mm) 700 × 800 × 1800
Weight (kg) 650
Specification Value
Input Voltage (Vac) 380 / 400 / 415 ±25%
Output Voltage (Vac) L-N: 220 / 230 / 240 ±1%; L-L: 380 / 400 / 415 ±1%
Dimension (W×D×H) (mm) 700 × 800 × 1800
Weight (kg) 825
Specification Value
Input Voltage (Vac) 380 / 400 / 415 ±25%
Output Voltage (Vac) L-N: 220 / 230 / 240 ±1%; L-L: 380 / 400 / 415 ±1%
Dimension (W×D×H) (mm) 1400 × 1000 × 1850
Weight (kg) 1280
Specification Value
Input Voltage (Vac) 380 / 400 / 415 ±25%
Output Voltage (Vac) L-N: 220 / 230 / 240 ±1%; L-L: 380 / 400 / 415 ±1%
Dimension (W×D×H) (mm) 1400 × 1000 × 1850
Weight (kg) 1568
Specification Value
Input Voltage (Vac) 380 / 400 / 415 ±25%
Output Voltage (Vac) L-N: 220 / 230 / 240 ±1%; L-L: 380 / 400 / 415 ±1%
Dimension (W×D×H) (mm) 1600 × 1000 × 1850
Weight (kg) 1830
Specification Value
Input Voltage (Vac) 380 / 400 / 415 ±25%
Output Voltage (Vac) L-N: 220 / 230 / 240 ±1%; L-L: 380 / 400 / 415 ±1%
Dimension (W×D×H) (mm) 1600 × 1000 × 1850
Weight (kg) 2050
Specification Value
Input Voltage (Vac) 380 / 400 / 415 ±25%
Output Voltage (Vac) L-N: 220 / 230 / 240 ±1%; L-L: 380 / 400 / 415 ±1%
Dimension (W×D×H) (mm) 3000 × 1000 × 1850
Weight (kg) 4500
Specification Value
Input Voltage (Vac) 380 / 400 / 415 ±25%
Output Voltage (Vac) L-N: 220 / 230 / 240 ±1%; L-L: 380 / 400 / 415 ±1%
Dimension (W×D×H) (mm) 3000 × 1000 × 1850
Weight (kg) 4500
